Frustum Culling

One of the biggest performance issue in computer graphics is doing computation on things that isn't going to show up on screen. We want to reduce them as much as possible. These computations in this case is triangle clipping. Right now, rasterizer do clipping test on every single triangle, including all the triangles of the mesh that is either completely inside/outside the view frustum. With frustum culling, we immediately reject mesh outside the frustum, and only perform clipping test on meshes lying on planes.

Lets first take a look at the theory behind frustrum culling, then we will look at pseudocode and finally at benchmark of the implementation.

In a standard graphics pipeline, clip-space is defined by the View-Projection (VP) matrix. A point Pc is inside the visible volume if:

 -w_c <= x_c/y_c/z_c <= w_c,
    where Pc = (x_c, y_c, z_c, w_c) is a point in clip-space

This volume is bounded by six planes. To cull objects efficiently, we need to extract these planes directly from our transformation matrix. These planes are:

-> -w_c <= x_c  = Left Plane
->  x_c <= w_c  = Right Plane
-> -w_c <= y_c  = Top Plane
->  y_c <= w_c  = Bottom Plane
-> -w_c <= z_c  = Near Plane
->  z_c <= w_c  = Far Plane

If we re-arrange them, we get:

-> w_c + x_c >= 0  = Left Plane
-> w_c - x_c >= 0  = Right Plane
-> w_c + y_c >= 0  = Top Plane              (EQ-0)
-> w_c - y_c >= 0  = Bottom Plane
-> w_c + z_c >= 0  = Near Plane
-> w_c - z_c >= 0  = Far Plane

Now, consider matrix multiplication of VP matrix and a world space point P to get clip-space point Pc:

-> Pc = VP • P

Let represent VP matrix by rows:

->
     | Row0 |
Pc = | Row1 | • P , where RowN represent each row of VP matrix
     | Row2 |
     | Row3 |

Results in:

-> x_c = Row0 • P
-> y_c = Row1 • P            (EQ-1)
-> z_c = Row2 • P
-> w_c = Row3 • P

Substituting EQ-1 in EQ-0, we get:

-> (Row3 • P) + (Row0 • P) >= 0  = Left Plane
-> (Row3 • P) - (Row0 • P) >= 0  = Right Plane
-> (Row3 • P) + (Row1 • P) >= 0  = Top Plane
-> (Row3 • P) - (Row1 • P) >= 0  = Bottom Plane
-> (Row3 • P) + (Row2 • P) >= 0  = Near Plane
-> (Row3 • P) - (Row2 • P) >= 0  = Far Plane

Re-arranging them:

-> (Row3 + Row0) • P >= 0  = Left Plane
-> (Row3 - Row0) • P >= 0  = Right Plane
-> (Row3 + Row1) • P >= 0  = Top Plane
-> (Row3 - Row1) • P >= 0  = Bottom Plane
-> (Row3 + Row2) • P >= 0  = Near Plane
-> (Row3 - Row2) • P >= 0  = Far Plane

Looks similar? It vector equation for each plane. Consider Left Plane, let expand Row3 and Row0:

-> Row0 = (VP_00, VP_01, VP_02, VP_03)
-> Row3 = (VP_30, VP_31, VP_32, VP_33)

-> Row3 + Row0 = (VP_30 + VP_00, VP_31 + VP_01, VP_32 + VP_02, VP_33 + VP_03)

Lets rename each components:

-> A = VP_30 + VP_00
-> B = VP_31 + VP_01
-> C = VP_32 + VP_02
-> D = VP_33 + VP_03

If we do dot product of (Row3 + Row0) = (A, B, C, D) with P = (x, y, z, 1) we get:

Ax + By + Cz + D >= 0

Which is general equation of plane. A, B, C would represent normal and D the distance from origin.

Pseudocode would look like:

def extractPlanes(view_projection_matrix):
    row0 = view_projection_matrix.row0()
    row1 = view_projection_matrix.row1()
    row2 = view_projection_matrix.row2()
    row3 = view_projection_matrix.row3()

    planes = [
        Vec4.add(row3, row0), # Left Plane
        Vec4.sub(row3, row0), # Right Plane
        Vec4.add(row3, row1), # Top Plane
        Vec4.sub(row3, row1), # Bottom Plane
        Vec4.add(row3, row2), # Near Plane
        Vec4.sub(row3, row2)  # Far Plane
    ]

    for plane in planes:
        mag = sqrt(plane.x * plane.x + plane.y * plane.y + plane.z * plane.z)
        plane.x /= mag
        plane.y /= mag
        plane.z /= mag
        plane.w /= mag

    return planes

Bounding Structures

There are multiple kind of bounding structures:

• Bounding Sphere
• Axis-Aligned Bounding Box (AABB)
• Oriented Bounding Box (OBB)
• Convex Hull

Among the fastest is Bounding Sphere and then AABB, but among the best bounded is OBB and Convex Hull. Each of them have their own use. For rasterizer need, we want to be able to quickly discard the object if it entirely out of frustum, and since our rasterizer has software triangle clipping (which can be a bottleneck) we want to do clipping only on objects intersecting the plane. So, we want the culling test to be fast with structure compact enough to minimize triangle clipping. Bounding Sphere and AABB are probably good enough for it.

To test sphere and plane intersection, we plug sphere's center into plane equation (sphere represented with center S = (Sx, Sy, Sz) and radius R):

ASx + BSy + CSz + D = 0

For each plane, we get three cases:

->       ASx + BSy + CSz + D  >  R  , completely inside the plane
->       ASx + BSy + CSz + D  < -R  , completely outside the plane
->  R <= ASx + BSy + CSz + D <= -R  , intersecting the plane

Psuedocode would look something like:

def testBoundingSphere(planes, sphere):
    count = 0
    for plane in planes:
        n = plane.vec3()
        d = plane.w
        distance = Vec3.dot(n, sphere.center) + d

        if distance < -sphere.radius:
            return "Outside"
        if distance > sphere.radius:
            count += 1

    if count == 6:
        return "Inside"
    else:
        return "On-plane"

Culling test for AABB isn't much more complicated, though it little bit more computationally expensive. AABB can be represent in multiple ways, we represent it as Center C + Extent E (size). This way we can get each point and only store 6 floats. Test is straight forward, check if each point is "inside" the plane.

Example for one of the point if it completely inside:

-> x = Cx + Ex
-> y = Cy + Ey
-> z = Cz + Ez

-> P = (x, y, z)

-> (n • P) + d <= 0

In pseudocode it translate to:

def testAABB(planes, aabb):
    plane_count = 0
    for plane in planes:
        count = 0
        n = plane.vec3()
        d = plane.w

        p = Vec3(aabb.c.x + aabb.e.x, aabb.c.y + aabb.e.y, aabb.c.z + aabb.e.z)
        if(Vec3.dot(n, p) + d > 0):
            count++
        p = Vec3(aabb.c.x - aabb.e.x, aabb.c.y + aabb.e.y, aabb.c.z + aabb.e.z)
        if(Vec3.dot(n, p) + d > 0):
            count++
        p = Vec3(aabb.c.x + aabb.e.x, aabb.c.y - aabb.e.y, aabb.c.z + aabb.e.z)
        if(Vec3.dot(n, p) + d > 0):
            count++
        p = Vec3(aabb.c.x + aabb.e.x, aabb.c.y + aabb.e.y, aabb.c.z - aabb.e.z)
        if(Vec3.dot(n, p) + d > 0):
            count++
        p = Vec3(aabb.c.x - aabb.e.x, aabb.c.y - aabb.e.y, aabb.c.z + aabb.e.z)
        if(Vec3.dot(n, p) + d > 0):
            count++
        p = Vec3(aabb.c.x + aabb.e.x, aabb.c.y - aabb.e.y, aabb.c.z - aabb.e.z)
        if(Vec3.dot(n, p) + d > 0):
            count++
        p = Vec3(aabb.c.x - aabb.e.x, aabb.c.y + aabb.e.y, aabb.c.z - aabb.e.z)
        if(Vec3.dot(n, p) + d > 0):
            count++
        p = Vec3(aabb.c.x - aabb.e.x, aabb.c.y - aabb.e.y, aabb.c.z - aabb.e.z)
        if(Vec3.dot(n, p) + d > 0):
            count++

        if(count == 0):
            return "Outside"
        if(count == 8):
            plane_count++

    if(plane_count == 6):
        return "Inside"
    else:
        return "On-plane"

Computationally, the AABB test is more expensive but if it culls better than sphere, better enough to reduce more pressure on culling test compared to sphere, than AABB should be faster.

Implementation

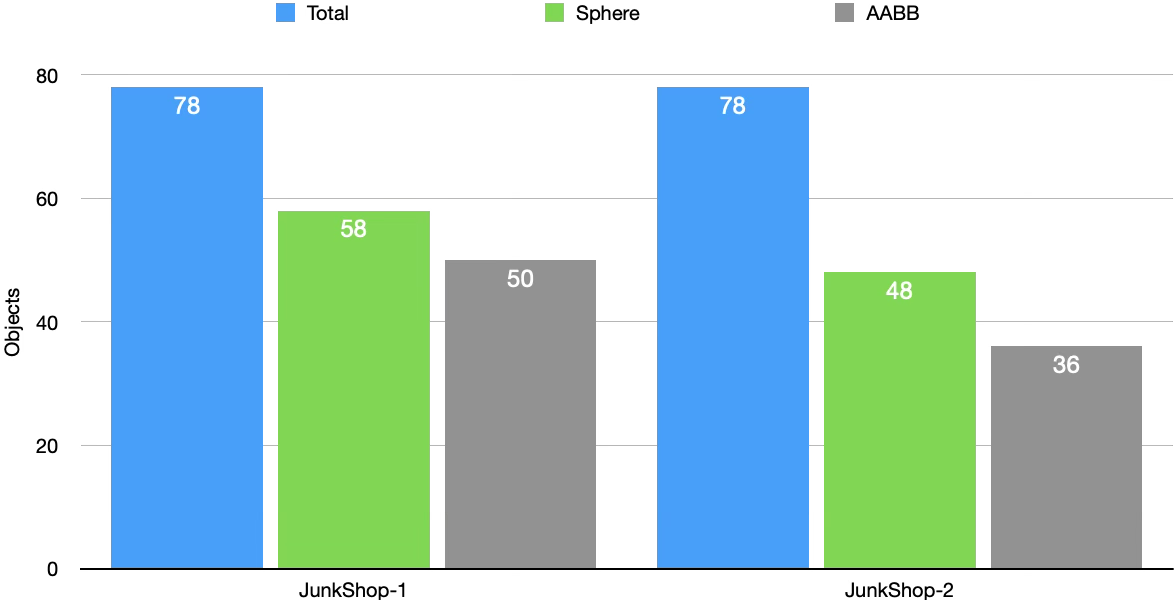

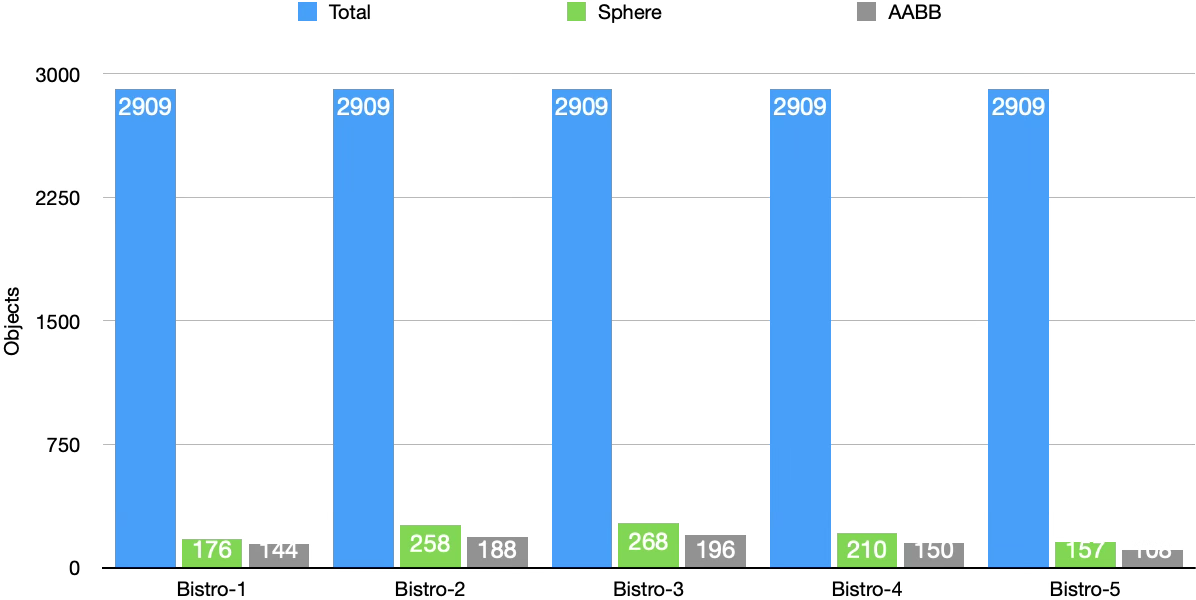

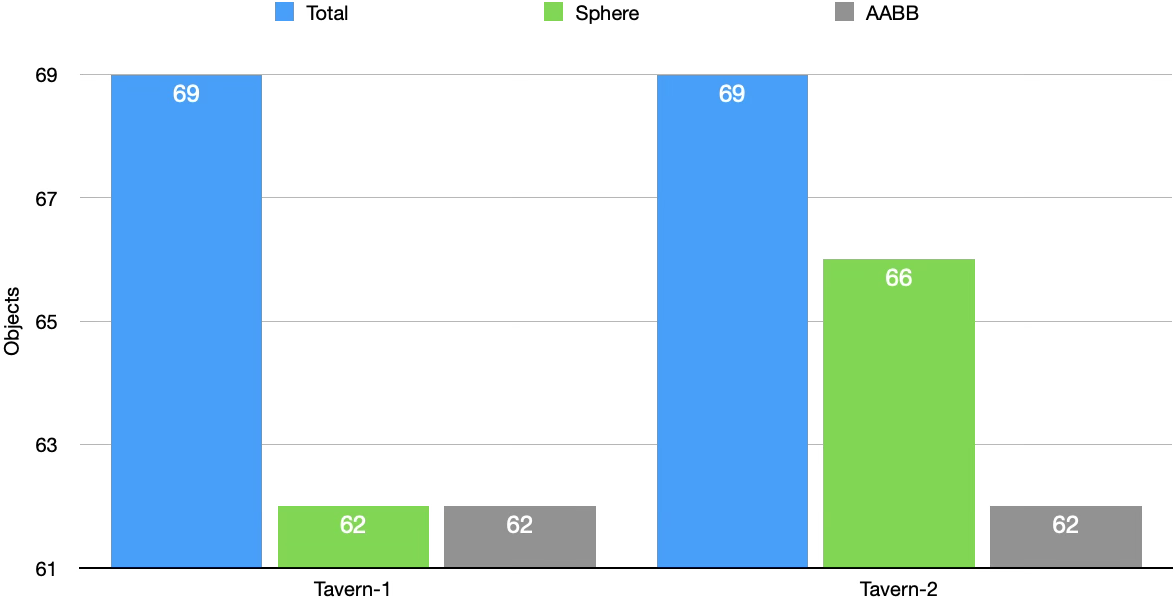

Here we have total object count, and "on-plane" object count for each bounding structure. Lower "on-plane" object count is better.

We can see AABB consistently perform better than sphere when it culling as accurately as possible and leaving less objects on plane for triangle clipping. This must mean we can also expect timing to be better for AABB, right?

Bistro Timings

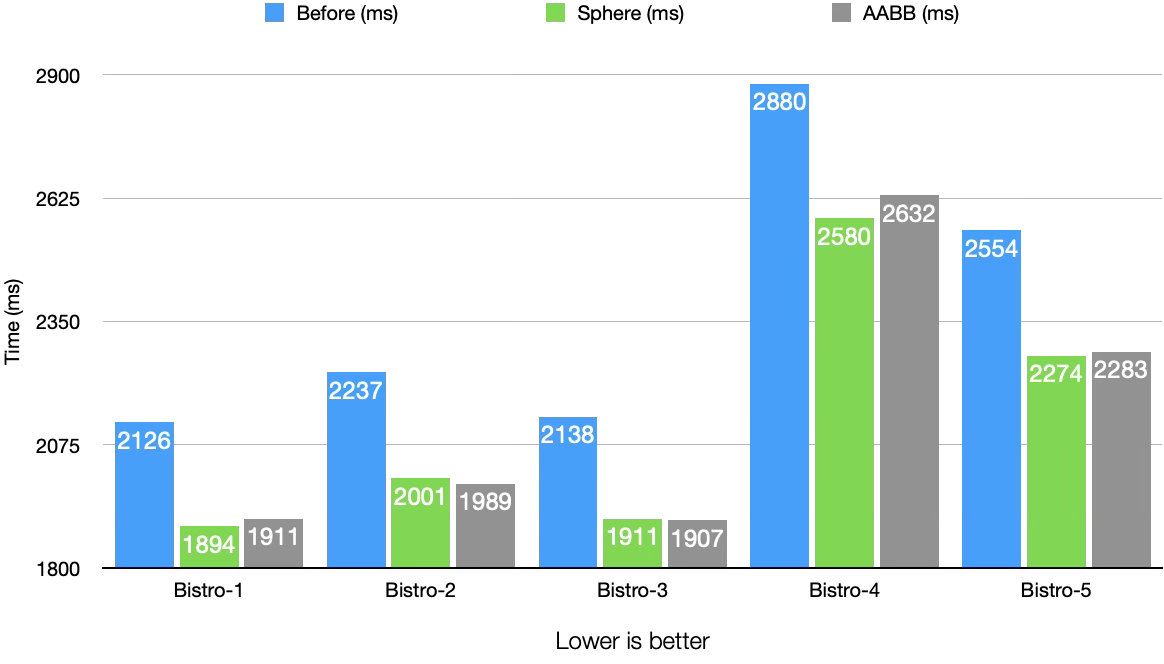

Lets take a look at Bistro scene, it's sample asset that is large enough to make difference with frustum culling. We have timings with Bounding Sphere:

The difference between before and after sphere frustum culling is loud and clear, with improvement consistently around ~10.5%. The timing is well above its standard error of difference SE Diff so we know improvement isn't noise.

Now lets see AABB frustum culling performance:

We can say the same here, performance improved upto 11.09%.

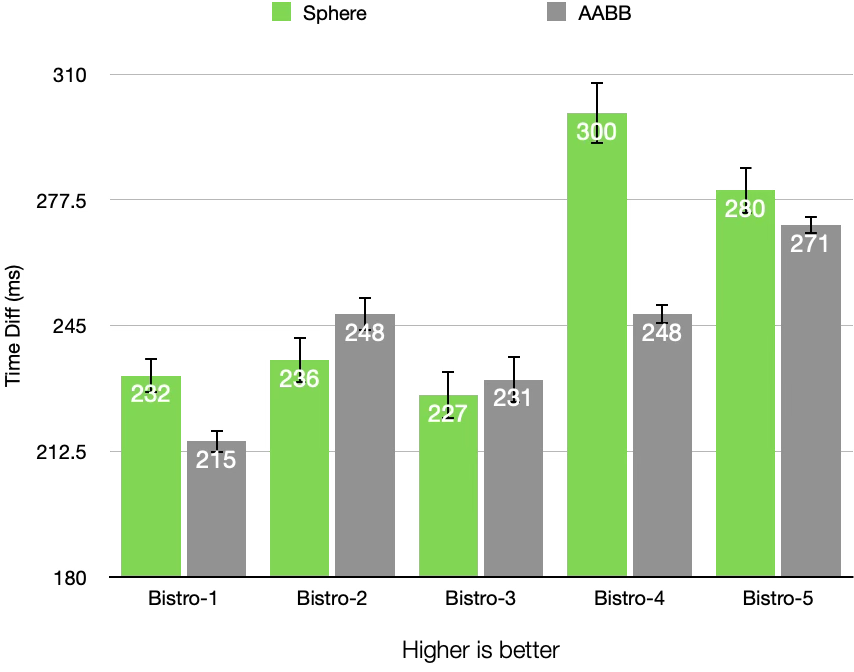

Now lets compare, both method and see which is actually better.

• Bistro-4: Sphere (2580 ms) beats AABB (2632 ms), their difference (52 ms) is well above their SE Diff (7.95 ms and 2.6 ms).
• Bistro-1: Sphere (1894 ms) beats AABB (1911 ms), their difference (17 ms) is above their SE Diff (4.56 ms and 2.87 ms).
• Bistro-5: Sphere (2274 ms) barely beats AABB (2283 ms), their difference (9 ms) is slightly above their SE Diff (6.12 ms and 2.36 ms).
• Bistro-2: AABB (1989 ms) beats Sphere (2001 ms), their difference (12 ms) is above their SE Diff (4.33 ms and 5.9 ms).
• Bistro-3: Its a tie between AABB (1907 ms) and Sphere (1911 ms), their difference (4 ms) is lower their SE Diff (6.15 ms and 6.31 ms).

From what we see above, Sphere frustum culling appears to be somewhat better than AABB. Only in Bistro-2 AABB win with some difference, while in Bistro-3 AABB win is within margins of error.

The Junk Shop Timings

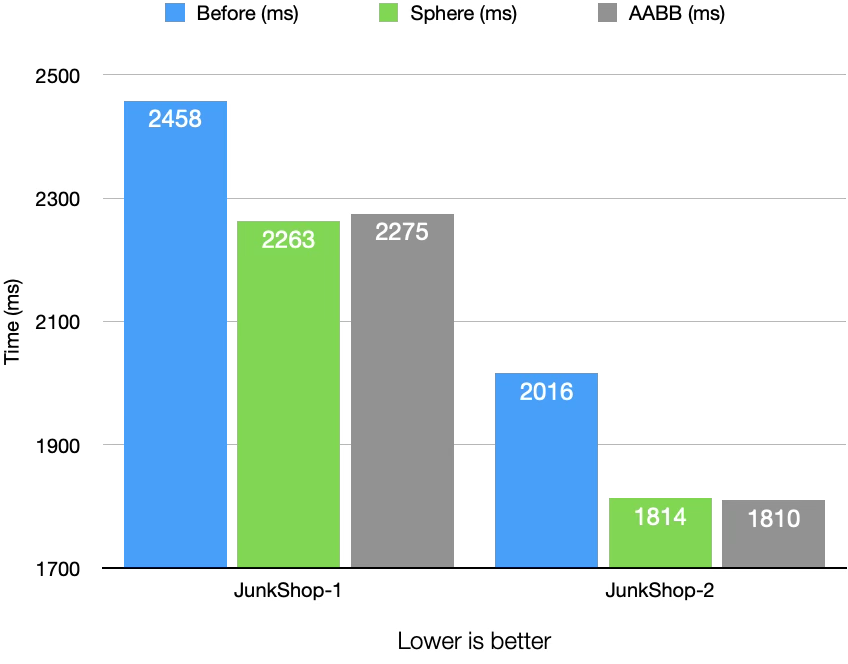

Sphere frustum culling timings:

AABB frustum culling timings:

Even though the object culling count isn't as stellar as Bistro scene, rejection of fewer but higher poly mesh has contributed to higher improvement.

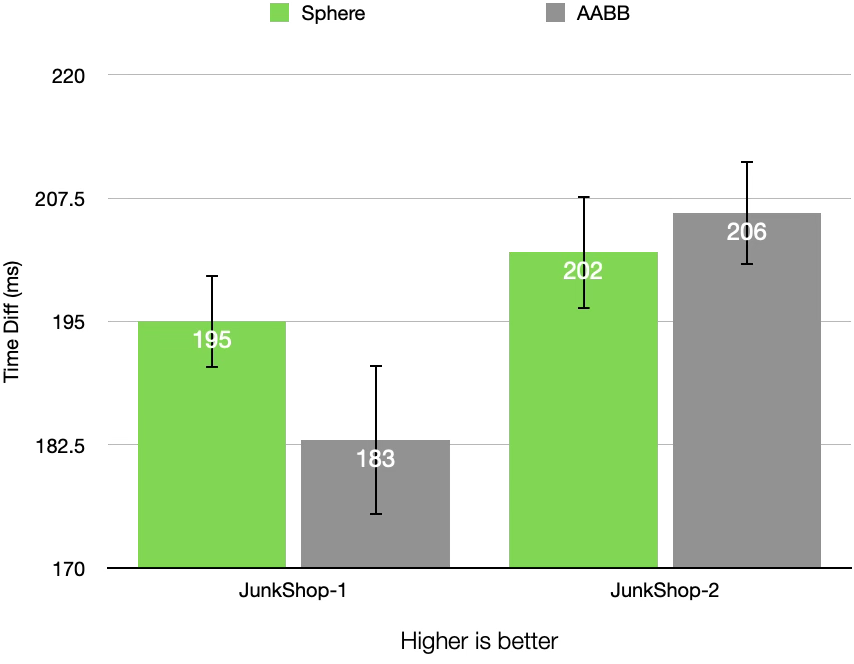

If we compare both methods, we can see:

• JunkShop-1: Sphere (2263 ms) beats AABB (2275 ms), their difference (12 ms) is above their SE Diff (4.72 ms and 7.6 ms).
• JunkShop-2: Its a tie between AABB (1810 ms) and Sphere (1814 ms), their difference (4 ms) is below their SE Diff (5.23 ms and 5.72 ms).

Sphere culling again appears to be slightly better than AABB.

Tavern Timings

Sphere frustum culling timings:

AABB frustum culling timings:

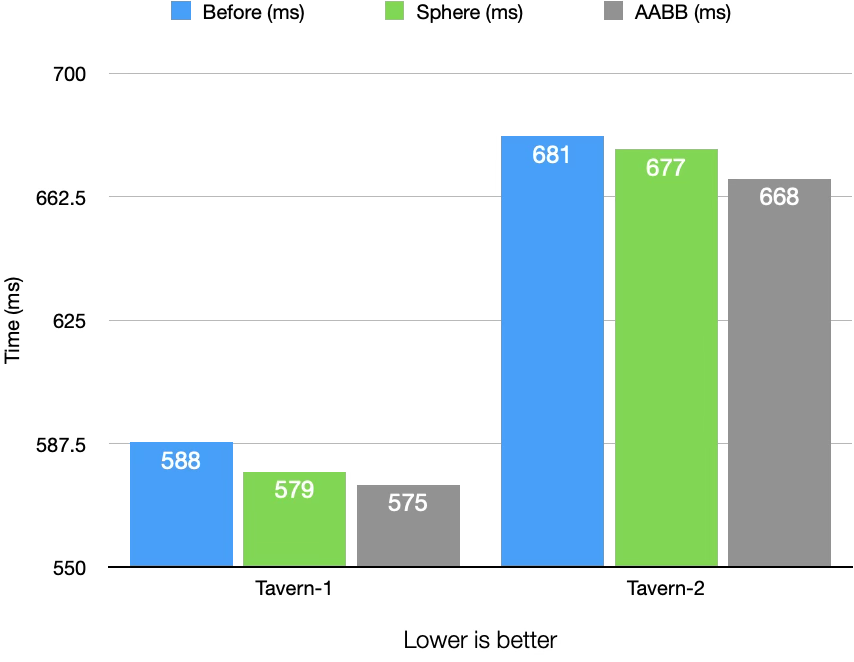

Although very small, there is real improvement in speed.

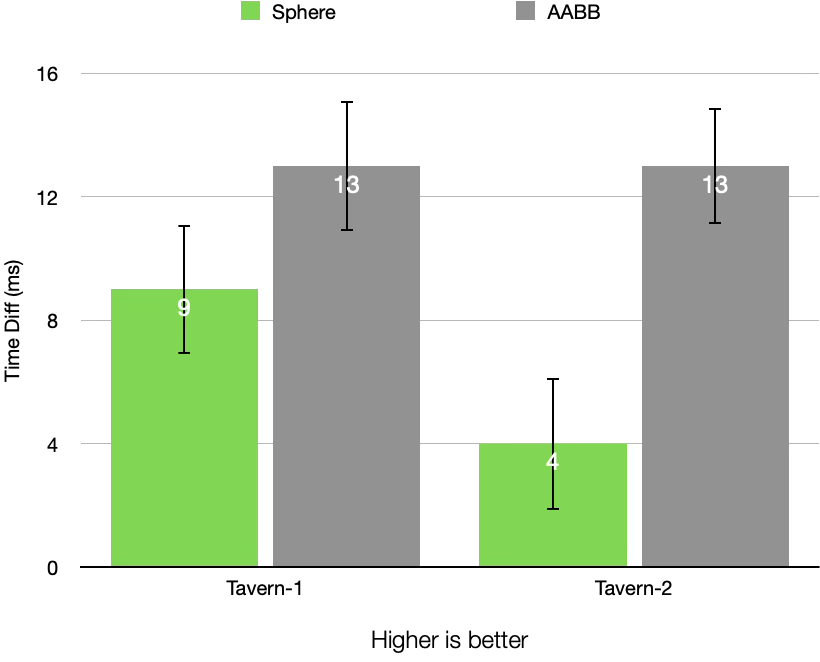

In both of the camera, AABB wins against Sphere:

• Tavern-1: AABB (575 ms) beats Sphere (579 ms), their difference (4 ms) is above then their SE Diff (2.09, 2.1).
• Tavern-1: AABB (668 ms) beats Sphere (677 ms), their difference (9 ms) is above then their SE Diff (2.14, 1.88).

Conclusion

Frustrum culling was the first step in improving the performance of a renderer, a step toward a hopeful real-time CPU rasterizer.

What surprising was the close fight between Sphere and AABB culling, with Sphere winning by a metre. Perhaps a more complicated and larger scene might change that? Also, since it follows glTF file and structure format, all the meshes are divided by materials, which might not be most efficient way to part meshes into most equal volumes. Lastly, there no hierarchical structure so, some desired milliseconds might be left out.
